AODELAN Wireless Camera Remote Control User Manual

1. Réamhrá

Thank you for choosing the AODELAN Wireless Camera Remote Control. This device is designed to provide convenient wireless control over various camera functions, including autofocus, shutter release, video recording, and zoom, for compatible Canon, Sony, and Nikon cameras, as well as smartphones. Please read this manual thoroughly before use to ensure proper operation and to maximize your experience.

2. Táirge Tharview

The AODELAN Wireless Camera Remote Control features an ergonomic design with clearly labeled buttons for intuitive operation. It allows for wireless control up to 10 meters (32.8 feet).

Image 2.1: Remote Control Diagram. This image displays the AODELAN Wireless Camera Remote Control with various components labeled, including light indicators, device selection buttons (A, B, C), power zoom buttons (W, T), shooting button, video recording button, and the ON-OFF switch.

2.1 Comhpháirteanna

• Camera Indicator Lamp (1): Indicates connection status for cameras.
• Devices Buttons (A, B, C) (2): Used to select and pair with up to three different cameras or devices.
• Power Zoom (W, T) (3): Controls zoom in (T) and zoom out (W) functions on compatible lenses.
• Shooting Button (4): Activates autofocus and triggers the shutter for still photography.
• Cnaipe Taifeadta Físe (5): Tosaíonn agus stopann fístaifeadadh.
• ON - OFF Switch (6): Powers the remote control on or off.
• Táscaire L.amp for Phone (7): Indicates connection status for smartphones.

2.2 Cad atá san áireamh

Image 2.2: Package Contents. This image shows the AODELAN Wireless Camera Remote Control and an included wrist strap.

The package includes the AODELAN Wireless Camera Remote Control and a wrist strap for secure handling.

3. Socrú

3.1 Suiteáil Battery

The remote control requires 2 AAA batteries (not included). To install:

1. Aimsigh an urrann ceallraí ar chúl an chianrialtáin.
2. Sleamhnán an clúdach ceallraí oscailte.
3. Cuir isteach dhá chadhnraí AAA, ag cinntiú go bhfuil an polaraíocht cheart (+/-).
4. Dún an clúdach ceallraí go daingean.

Image 3.1: Battery Compartment. This image illustrates the back of the remote control with the battery compartment open, showing where to insert two AAA batteries.

3.2 Péireáil le do Ghléas

The remote control can be paired with up to three cameras (Canon, Sony, Nikon) and one smartphone simultaneously. The operating range is approximately 10 meters (32.8 feet).

Image 3.2: Wireless Communication. This image depicts the remote control wirelessly communicating with a camera, highlighting the 10m/32.8ft operating range.

To pair the remote with a camera or smartphone:

1. Turn on the remote control using the ON-OFF switch.
2. Select an unused device button (A, B, or C) on the remote by pressing it for 2-3 seconds until its indicator light flashes.
3. On your camera or smartphone, enable Bluetooth and enter pairing mode. Refer to your device's manual for specific instructions.
4. Once the remote control appears in your device's Bluetooth list, select it to complete pairing. The indicator light on the remote will become solid when successfully connected.

Nótaí Péireála Sonracha:

• Canon Cameras: Ensure the camera is set to "Bluetooth remote trigger mode" in its settings.
• Ceamaraí Sony: Some models (e.g., A9, A7 III, A6400, DSC-RX0 II) may require specific firmware versions for full compatibility.
• Nikon Cameras: Ensure your Nikon camera supports Bluetooth remote control.
• Fóin Chliste: Pairing is done via standard Bluetooth settings.

Image 3.3: Device Compatibility. This image provides a detailed list of compatible Nikon, Sony, and Canon camera models, along with specific notes regarding firmware updates or zoom function limitations.

4. Treoracha Oibriúcháin

4.1 Shutter Release and Autofocus

Chun grianghraf a ghlacadh:

1. Ensure your camera is powered on and in photo mode.
2. Brúigh an Cnaipe Lámhach (camera icon) halfway to activate autofocus.
3. Brúigh an Cnaipe Lámhach fully to release the shutter and capture the image.

Image 4.1: Image Capture. This image demonstrates using the remote control to capture a still image, showing the remote and the resulting photograph.

4.2 Taifeadadh Físeáin

To start and stop video recording:

1. Ensure your camera is powered on and in video recording mode.
2. Brúigh an Cnaipe Taifeadta Físeáin (red circle) once to start recording. The camera's recording indicator will illuminate.
3. Brúigh an Cnaipe Taifeadta Físeáin arís chun stop a chur leis an taifeadadh.

4.3 Rialú Súmála

Tá an W (Wide-angle) and T (Telephoto) buttons control the optical zoom of compatible lenses.

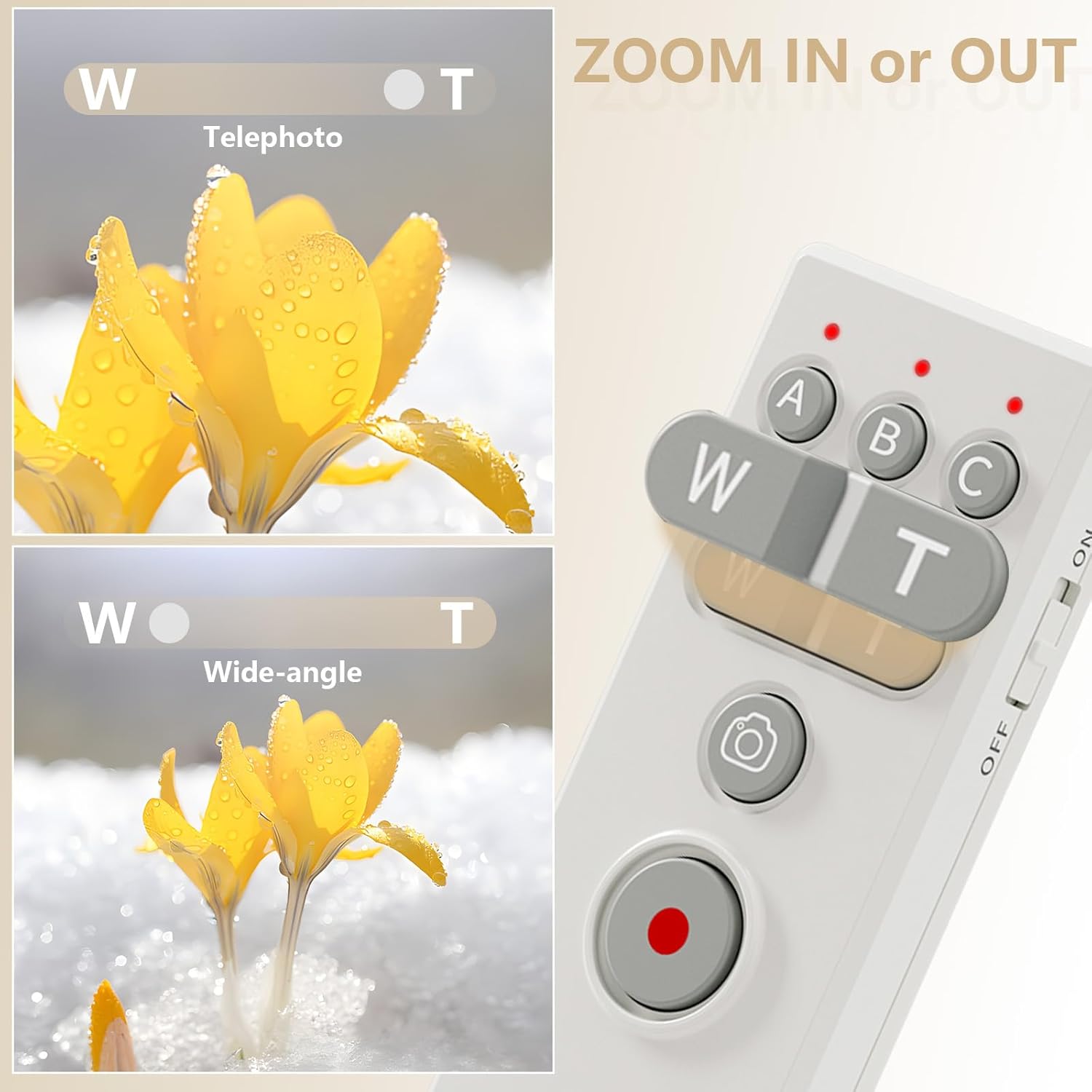

Image 4.2: Zoom Function. This image highlights the 'W' and 'T' buttons on the remote for zoom control, illustrating their effect with examples of wide-angle and telephoto shots of flowers.

Important Zoom Notes:

• Canónach: Zoom functionality only works with the Canon PZ-E1 Power Zoom Adapter (not included) and specific lenses like the EF-S 18-135mm f/3.5-5.6 IS USM lens.
• Nikon Z Series: The zoom function is not supported for Nikon Z series cameras.
• Fóin Chliste: Zoom functionality may be limited or unavailable depending on the smartphone model and camera application.

4.4 Multi-Device Control

The remote control can manage up to three cameras and one smartphone simultaneously. Use the A, B, and C buttons to switch between paired devices.

Image 4.3: Multi-Device Control. This image shows a hand holding the remote control, with multiple cameras and a smartphone set up, indicating the remote's ability to control up to four devices simultaneously.

4.5 Bulb Mode Operation

For long exposure photography using Bulb mode:

1. Set your camera to Bulb exposure mode (often labeled 'B' or 'Time').
2. Brúigh an Cnaipe Lámhach once to open the shutter.
3. Brúigh an Cnaipe Lámhach again to close the shutter, ending the exposure.

Image 4.4: Bulb Mode. This image displays a long exposure photograph of light trails, illustrating the effect achievable with Bulb mode.

4.6 Anti-Shake Functionality

Using the remote control minimizes camera shake, resulting in sharper images, especially in low light or with long exposures.

Image 4.5: Sharper Photos. This image presents a side-by-side comparison of a bird photograph, showing a less sharp image labeled 'Before use' and a sharper image labeled 'After use', demonstrating the benefit of anti-shake for stable images.

4.7 Taispeántas Físeáin

5. Cothabháil

• Coinnigh an rialtán cianda tirim agus glan. Seachain nochtadh do thaise nó do theocht mhór.
• Clean the remote with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• If the remote will not be used for an extended period, remove the batteries to prevent leakage.
• The remote can be powered via USB-TYPE-C from a power bank for extended use.

Image 5.1: Power Bank Connection. This image shows the remote control connected to a power bank via a USB-C cable, indicating its ability to be powered externally.

6. Fabhtcheartú

• Remote not pairing:
  • Cinntigh go bhfuil cadhnraí suiteáilte agus luchtaithe i gceart.
  • Verify the remote is powered on.
  • Confirm your camera/smartphone's Bluetooth is enabled and in pairing mode.
  • Check camera settings for specific Bluetooth remote control options (e.g., Canon's "Bluetooth remote trigger mode").
  • Ensure your camera model is listed as compatible in Section 3.2.
• Zoom function not working:
  • Confirm your lens supports power zoom and, for Canon, if the PZ-E1 Power Zoom Adapter is required and attached.
  • Note that Nikon Z series cameras do not support the zoom function via this remote.
  • Smartphone zoom functionality may vary.
• Limited functions with smartphone:
  • When paired with a smartphone, the remote may only trigger photo/video based on the phone's current camera app setting. Zoom and other advanced functions might not be supported.
• Remote unresponsive:
  • Cuir cadhnraí nua in ionad cadhnraí.
  • Turn the remote off and on again.
  • Re-pair the remote with your device.

7. Sonraíochtaí

8. Tacaíocht

For further assistance or inquiries, please contact AODELAN customer support through the retailer's platform or the official AODELAN websuíomh.
