DEWIN VFD Inverter 2.2kW Instruction Manual

1. Réamhrá

This manual provides essential information for the safe and efficient operation of your DEWIN VFD Inverter. Please read these instructions carefully before installation, operation, or maintenance. Retain this manual for future reference.

2. Faisnéis Sábháilteachta

RABHADH: Guais ​​turraing leictrigh. Níor cheart ach do phearsanra cáilithe an suiteáil agus an chothabháil a dhéanamh.

• Ensure the power supply is disconnected before any wiring or maintenance.
• Fíoraigh imleabhar cearttage and current ratings before connecting the inverter.
• Ground the inverter properly to prevent electrical hazards.
• Do not operate the inverter with damaged wiring or components.
• Avoid exposing the inverter to moisture, dust, or corrosive environments.
• Allow sufficient cooling time after operation before handling internal components.

3. Táirge Tharview

The DEWIN VFD Inverter (Model AT4-2200X) is designed to regulate motor power and speed, offering energy savings and reducing voltage fluctuations. It features a robust design with multiple protection mechanisms.

Príomhghnéithe:

• Intelligent Motor Speed Regulation: Provides precise control over motor speed.
• Coigilt Fuinnimh: Optimizes power consumption for connected equipment.
• Imltage Fluctuation Reduction: Stabilizes the power supply to the motor.
• Ardfheidhmíocht: Achieves high torque, high precision, and a wide speed range.
• Painéal Rialaithe Inbhainte: Allows for flexible installation and remote operation.
• Tógáil Láidir: Made from high-impact, heat-resistant, flame-retardant ABS plastic.
• Fuarú Éifeachtach: Features a thickened heatsink and dual high-efficiency fans for superior heat dissipation.
• Low Noise and EMI: Optimized PWM control technology minimizes operational noise and electromagnetic interference.

Gnéithe Cosanta:

• Cosaint Overload
• Cosaint róthéamh
• Overvoltage Cosaint
• Load Drop Protection
• Íseal Voltage Cosaint
• Cosaint Forshrutha
• Phase Loss Protection
• Cosaint ar Locht Talún
• Cosaint Gearrchiorcaid
• Cosaint Stallaí

4. Sonraíochtaí

5. Suiteáil

5.1 Suiteáil Fhisiciúil

Mount the VFD inverter in a well-ventilated area, away from direct sunlight, excessive heat, moisture, and corrosive substances. Ensure adequate clearance around the unit for proper airflow and heat dissipation. The unit features a thickened heatsink and dual fans for efficient cooling.

5.2 Léaráid Sreangaithe

Refer to the diagram below for correct wiring connections. Ensure all connections are secure and comply with local electrical codes.

Image: Wiring diagram for the DEWIN VFD Inverter. It illustrates connecting a single-phase 220V power supply to the L and N terminals, and a three-phase 380V motor to the W, V, and U terminals.

• Connect the single-phase 220V input power supply to the L agus N críochfoirt.
• Connect the three-phase 380V motor to the W, V, agus U críochfoirt.
• Ensure proper grounding of the inverter and the motor.

6. Oibríocht

6.1 Painéal Rialúcháin

The inverter features a user-friendly control panel for setting parameters and controlling operation. The panel is removable, allowing for separate installation and remote control.

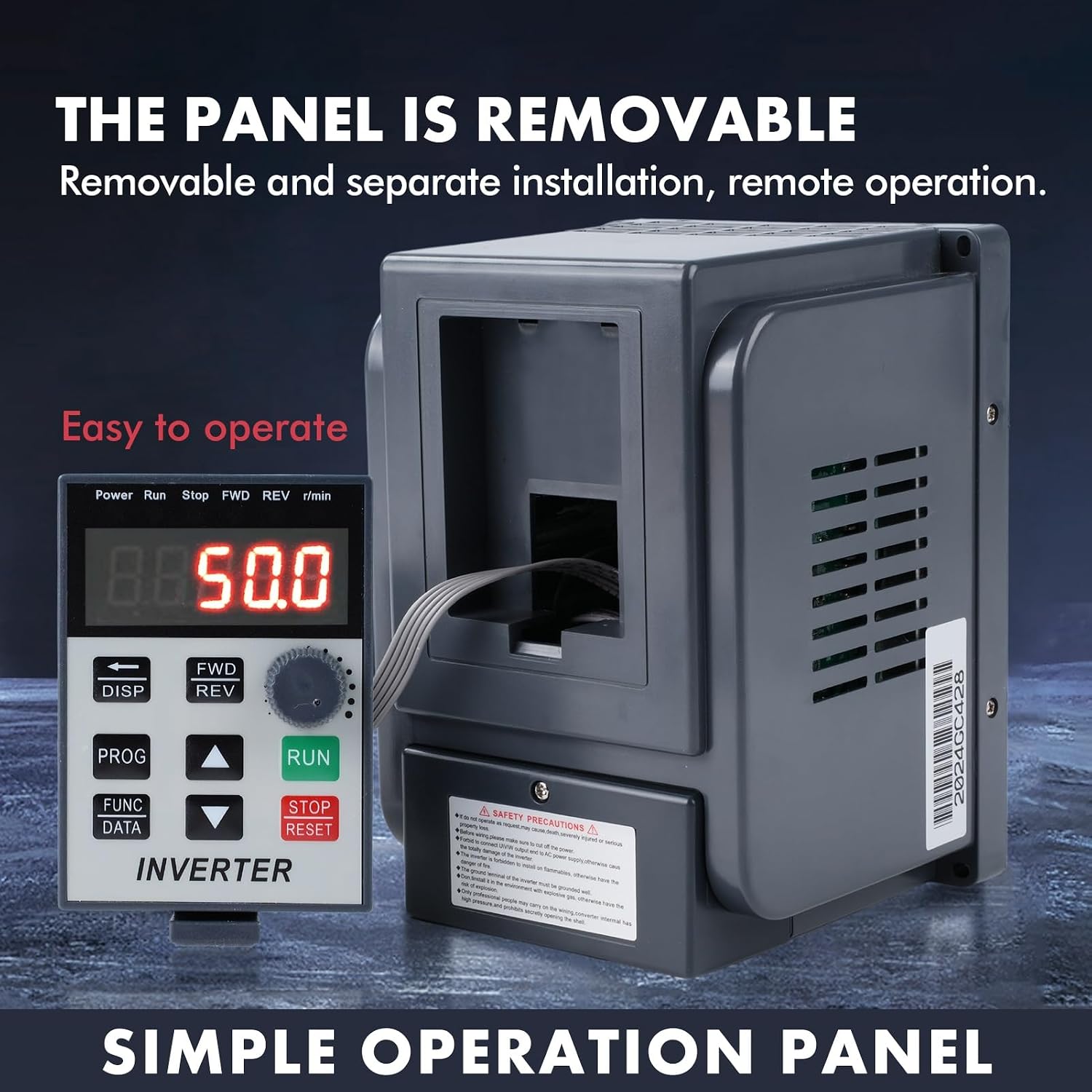

Image: The DEWIN VFD Inverter with its control panel detached, highlighting its removable design for remote operation. The panel displays current frequency (e.g., 50.0 Hz) and control buttons.

Cnaipí Painéal Rialaithe:

• Rith: Tosaíonn an mótar.
• STOP/RESET: Stops the motor or resets errors.
• FWD/REV: Changes motor direction (Forward/Reverse).
• DISP: Toggles display modes.
• PROG: Téann sé isteach sa mhodh ríomhchlárúcháin.
• FUNC/DATA: Accesses function parameters and data.
• Saigheada Suas/Síos: Adjusts parameters or frequency.
• Knob Rothlach: Fine-tunes frequency or parameter values.

6.2 Oibríocht Bhunúsach

1. Cumhacht ar: Connect the inverter to the single-phase 220V power supply. The display will light up.
2. Minicíocht Socraigh: Use the Up/Down arrows or the rotary knob to set the desired output frequency.
3. Tosaigh Mótar: Brúigh an Rith cnaipe chun an mótar a thosú.
4. Stop Mótar: Brúigh an STOP / RESET button to stop the motor.
5. Athrú Treo: Brúigh an FWD/REV button to switch between forward and reverse rotation.

7. Iarratais

The DEWIN VFD Inverter is suitable for a wide range of industrial and manufacturing applications requiring precise motor speed control and power optimization. It is designed for use with various three-phase 380V equipment.

Image: Visual representation of common applications for the VFD Inverter, including motors, water pumps, fans, conveyor belts, and compressors.

Common Uses Include:

• Lucht leanúna
• Pumps (Water Pumps, Industrial Pumps)
• CNC Machine Tools
• Ball Mills
• Injection Molding Machines
• Brúiteoirí
• Conveyors / Conveyor Belts
• Textile Equipment

8. Cothabháil

Regular maintenance ensures the longevity and reliable operation of your VFD inverter.

• Glanadh: Periodically clean the exterior of the inverter and ensure ventilation openings are free from dust and debris. Use a soft, dry cloth.
• Cigireacht lucht leanúna: Check the cooling fans for proper operation and cleanliness. Ensure no obstructions impede airflow.
• Seiceáil Ceangal: Regularly inspect all electrical connections for tightness and signs of corrosion or damage.
• Coinníollacha Comhshaoil: Cinntigh go bhfanann an timpeallacht oibriúcháin laistigh de na raonta teochta agus taise sonraithe.
• Cigireacht Ghairmiúil: For internal components or complex issues, consult a qualified technician.

Íomhá: Dlúth-amharc views highlighting the inverter's quality details, including the CE certified cooling fan, the robust ABS plastic shell, and the corrosion-resistant stainless steel bottom.

9. Fabhtcheartú

If you encounter issues with your DEWIN VFD Inverter, refer to the following general troubleshooting steps. For complex problems, contact customer support.

• Gan Cumhacht: Check the input power supply, circuit breaker, and all wiring connections.
• Mótar Gan Tosú: Verify the RUN command is active, check motor connections, and ensure no fault codes are displayed.
• Overload Error: Reduce the motor load, check for mechanical issues with the driven equipment, or verify the inverter's current settings.
• Overheat Error: Ensure adequate ventilation, clean cooling fins and fans, and check ambient temperature.
• Torann Neamhghnáthach: Check motor bearings, coupling, and ensure the inverter is securely mounted.
• Earráidí Taispeána: Note any error codes displayed and consult the manual for specific meanings (if available in the full product manual). Try resetting the inverter.

Image: The DEWIN VFD Inverter alongside a comprehensive list of its ten protection features, designed to ensure electrical safety and operational stability.

10. Barántas agus Tacaíocht

For warranty information or technical support, please refer to the documentation included with your purchase or contact DEWIN customer service. Keep your purchase receipt and product model number (AT4-2200X) handy when contacting support.
