1. Réamhrá
This manual provides essential information for the safe and efficient operation of your EVJUICION 7kW Single-Phase 32A Electric Vehicle Charging Station, Model JYDC. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Faisnéis Sábháilteachta
WARNING: Electrical installation must be performed by a qualified and licensed electrician in accordance with all local and national electrical codes.
- Do not attempt to open, disassemble, or modify the charging station.
- Ensure the charging station is installed in a well-ventilated area, away from flammable materials.
- Do not use the charging station if the cable or connector is damaged.
- Coinnigh leanaí agus peataí ar shiúl ón stáisiún luchtaithe le linn oibríochta.
- In case of emergency, press the Cnaipe Stoptha Éigeandála located on the side of the charging station to immediately cut power.
- The charging station is designed for single-phase electrical systems (L1, N, PE). Incorrect wiring can cause serious damage or injury.
3. Gnéithe Táirgí
- 7kW Fast Charging: The single-phase charging station provides a maximum charging power of 7 kW and a maximum output current of 32 amperes. This EV charger is twice as fast as a standard 16A EV charger. Clear LED indicators allow real-time monitoring of the charging status.
- Two Charging Modes: Our Type 2 EV charger offers two charging modes: RFID card mode and Plug-and-Play mode. Using RFID cards simplifies charging options.
- Durable 5-Meter Cable: The 5-meter TPU cable has successfully passed 20,000 bending tests, and the Type 2 plug has passed 15,000 mating tests, ensuring a longer lifespan.
- Comhoiriúnacht Leathan: Compatible with all European Type 2 (IEC 62196) electric and hybrid vehicles.
- Battery Health Protection: Once the electric vehicle charging station fully charges the car, it automatically cuts off the power supply to prevent overcharging and protect the car's battery health.
- Gnéithe Ilchosanta: Includes IP67 waterproof rating, overload protection, overcurrent protection, leakage protection, over temperature protection, lightning protection, ungrounded protection, and CP-protection.
- Frithsheasmhacht Aimsire Foircní: Designed to be waterproof (IP54/IP67), dustproof (IP54/IP67), cold resistant (-30°C/-86°F), and heat resistant (50°C/122°F).
- Dearadh cairdiúil: Features a compact design with an included hook for convenient storage.
Figure 1: Multiple Protection Features
Figure 2: Superior Material and Durability Tests
Figure 3: 7kW Charging Speed Comparison
Figure 4: User-Friendly Design with 5m Cable and Hook
Figure 5: Wide Compatibility with Type 2 EVs & PHEVs
4. Socrú agus Suiteáil
The EVJUICION charging station is designed for wall-mounted installation. Due to the electrical nature of this product, installation must be carried out by a certified electrician to ensure safety and compliance with local regulations.
4.1 Ceangal Leictreach
The charging station requires a single-phase electrical connection. Ensure the wiring corresponds to Line (L1), Neutral (N), and Protective Earth (PE) as indicated in the diagram below. Incorrect wiring can lead to malfunction or safety hazards.
Figure 6: Single-Phase Electrical Connection Diagram
Nóta: Connections to the distribution box must be made by qualified professionals.
4.2 Gléasta
Securely mount the charging station to a solid wall surface using appropriate fasteners. Ensure the mounting height allows for comfortable access to the charging cable and controls.
5. Treoracha Oibriúcháin
The EVJUICION charging station offers two convenient charging modes:
5.1 Táscairí LED
- Cumhacht: Léiríonn sé go bhfuil an t-aonad ar siúl.
- Muirear: Léiríonn sé muirearú gníomhach.
- Locht: Indicates an error or malfunction. Refer to the Troubleshooting section.
5.2 Modh Muirir

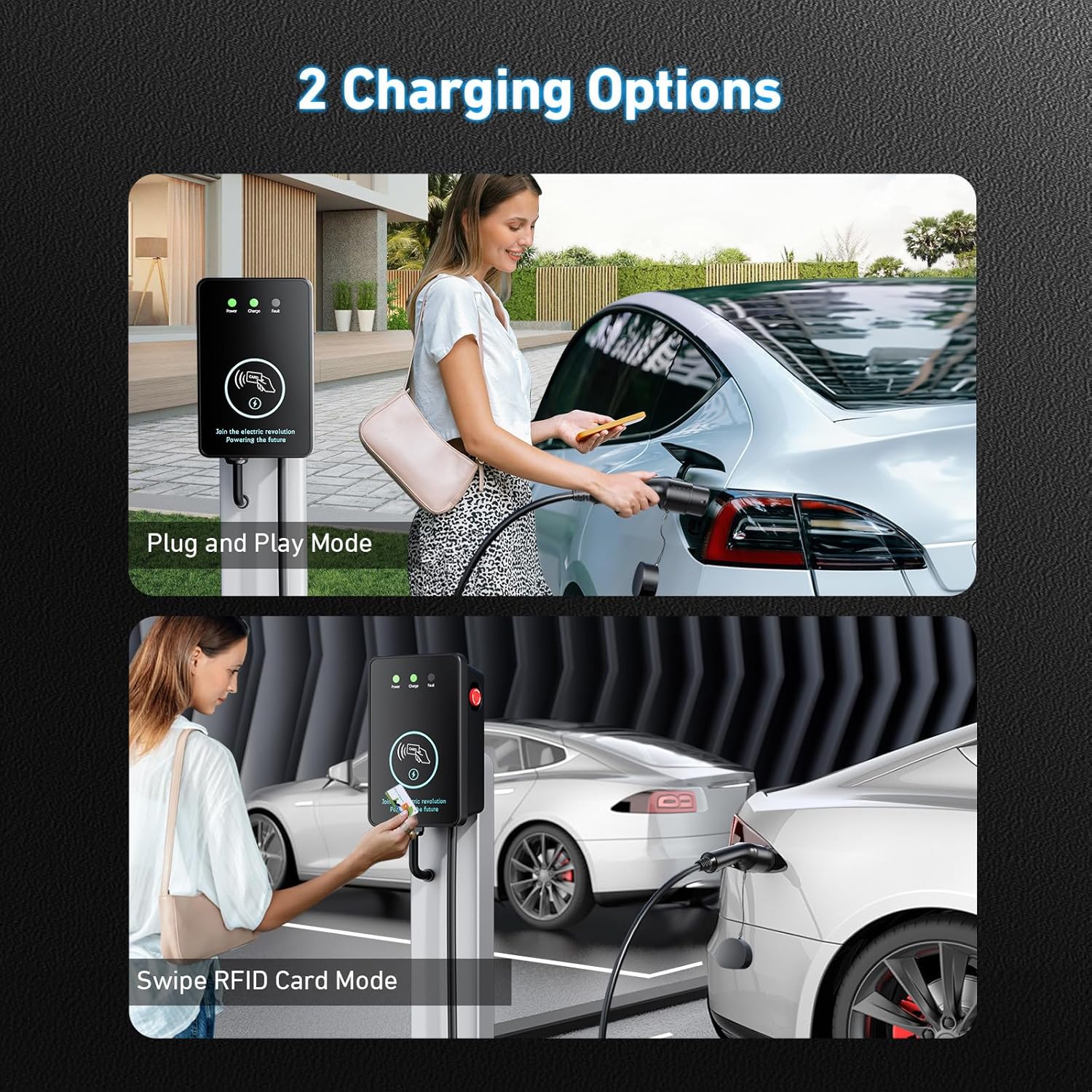

Figure 7: Two Charging Options: Plug and Play & RFID Card Mode
5.2.1 RFID Card Mode
- Connect the Type 2 charging cable to your electric vehicle's charging port.
- Swipe the provided RFID card over the designated RFID reader area on the charging station.
- The 'Charge' LED indicator will illuminate, and charging will begin.
- To stop charging, swipe the RFID card again or press the Emergency Stop Button.
5.2.2 Plug-and-Play Mode
This mode allows charging to start automatically upon connection without needing an RFID card.
- To switch to Plug-and-Play mode, swipe the RFID card in the designated area for approximately 15 seconds. The charging station will confirm the mode change.
- Once in Plug-and-Play mode, simply connect the Type 2 charging cable to your electric vehicle's charging port.
- The 'Charge' LED indicator will illuminate, and charging will begin automatically.
- To stop charging, disconnect the cable from your vehicle or press the Emergency Stop Button.
5.3 Stop Éigeandála
An emergency stop button is located on the side of the charging station. Press this button at any time to immediately cut power to the charging process.
6. Cothabháil
Regular maintenance ensures the longevity and safe operation of your EVJUICION charging station.
6.1 Glanadh
- Wipe the exterior of the charging station with a soft, damp éadach. Ná húsáid glantóirí nó tuaslagóirí scríobach.
- Ensure the charging port and cable connectors are free from dust, dirt, and moisture.
6.2 Cúram Cábla
- Inspect the charging cable and connectors regularly for any signs of damage, wear, or fraying. Do not use if damaged.
- Avoid bending or kinking the cable sharply.
- Store the cable properly using the integrated hook when not in use to prevent tripping hazards and damage.
6.3 Cúrsaí Timpeallachta
The charging station is designed to be extreme-weather resistant, with an operating temperature range of -30°C to 50°C.
Figure 8: Extreme Weather Resistance
7. Fabhtcheartú
Má bhíonn fadhbanna agat le do stáisiún luchtaithe, féach ar na fadhbanna agus na réitigh choitianta seo a leanas:
| Fadhb | Cúis Féideartha | Réiteach |
|---|---|---|
| Gan chumhacht / LED cumhachta múchta | No electricity supply; circuit breaker tripped. | Check main power supply and circuit breaker. Ensure proper installation. |
| Ní thosaíonn muirearú | Cable not fully connected; incorrect charging mode; RFID card not read; vehicle fault. | Ensure cable is securely connected. Re-swipe RFID card. Check vehicle's charging status. Try switching modes. |
| Fault LED is on | Internal error; overcurrent/overvoltage; leakage; over-temperature. | Disconnect the charger from the vehicle and power supply. Wait a few minutes, then reconnect. If the fault persists, contact a qualified electrician or customer support. |
| Stopann an muirear gan choinne | Vehicle fully charged; power interruption; internal protection activated. | Check vehicle's charge level. Verify power supply. If a fault LED is on, refer to the 'Fault LED is on' solution. |
For issues not listed above or if problems persist, please contact customer support.
8. Sonraíochtaí
| Sonraíocht | Luach |
|---|---|
| Branda | Léiriú |
| Uimhir Mhúnla | JYDC |
| Dath | Dubh |
| Cumhacht Muirear uasta | 7 kW |
| Rátáil Reatha | 32 A |
| Ionchur Voltage | 220 Volta |
| Aschur Voltage | 220 Volta |
| Fad Cábla | 5 Mhéadar |
| Cineál nascóirí | Cineál 2 (IEC 62196) |
| Teocht Oibriúcháin | -30 °C go 50 °C |
| Meáchan Mír | 3.75 cileagram |
| Sonraíochtaí Comhlíontacha | CE, TÜV, IEC |
| UPC | 751203821823 |
9. Barántas agus Tacaíocht
Specific warranty details and support contact information are not provided in the product data. Please refer to the product packaging or the seller's websuíomh gréasáin le haghaidh na dtéarmaí baránta is déanaí agus teagmhálacha tacaíochta custaiméirí.
For technical assistance or service inquiries, please contact the retailer or manufacturer directly.
