Réamhrá
Thank you for choosing the Daewoo DFR-32210GNP Top Mount Refrigerator with Dispenser. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read it thoroughly before using your refrigerator and keep it for future reference.
Your Daewoo refrigerator is designed for convenience and efficiency, featuring a multi-purpose drawer, LED lighting, a Smart Cooling system, and a spacious rack for large bottles.
Eolas Sábháilteachta
Chun an riosca tine, turraing leictreach, nó díobhála a laghdú agus do chuisneoir á úsáid agat, lean na réamhchúraimí bunúsacha seo:
- Cinntigh go bhfuil an cuisneoir talmhaithe i gceart.
- Ná húsáid fearais leictreacha laistigh de na hurranna stórála bia mura bhfuil siad den chineál a mholann an monaróir.
- Díphlugáil an cuisneoir sula ndéantar aon ghlanadh nó cothabháil air.
- Coinnigh oscailtí aerála, sa imfhálú fearas nó sa struchtúr tógtha, saor ó bhac.
- Ná déan damáiste don chiorcad cuisneáin.
- Ná stóráil substaintí pléascacha ar nós cannaí aerasóil le tiomántán inadhainte san fhearas seo.
- Ba chóir go ndéanfaí maoirseacht ar leanaí lena chinntiú nach mbíonn siad ag súgradh leis an bhfearas.
Socrú agus Suiteáil
Díphacáil
Remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any damage during transit. Keep packaging materials out of reach of children.
Socrúchán
Choose a location with a solid, level floor that can support the weight of the refrigerator when fully loaded. Ensure adequate clearance around the appliance for proper ventilation (at least 5 cm on sides and back, 10 cm on top). Avoid direct sunlight, heat sources, or extreme cold. The refrigerator operates on 120 Volts.

Fíor 1: Refrigerator dimensions. The unit measures 178 cm in height, 65 cm in width, and 72 cm in depth.
Leibhéalta
Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level. This helps with door alignment and proper operation.
Ceangal Leictreach
Plug the refrigerator into a dedicated, grounded 120 Volt AC outlet. Do not use extension cords or adapter plugs. Allow the refrigerator to stand for at least 2-3 hours before plugging it in to allow refrigerants to settle.
Glanadh Tosaigh
Before storing food, clean the interior of the refrigerator with a mild detergent and warm water. Wipe dry with a soft cloth.
Treoracha Oibriúcháin
Rialú Teochta
Your refrigerator is equipped with a temperature control system. Refer to the control panel inside the fresh food compartment to adjust the temperature settings. Start with a medium setting and adjust as needed based on food load and ambient temperature.
Smart Cooling System
The Smart Cooling system ensures optimal temperature distribution throughout the refrigerator, maintaining consistent cooling and freshness for your food items.
Soilsiú LED
The interior of your refrigerator is illuminated with energy-efficient LED lighting, providing clear visibility of your stored items.
Multi-Purpose Drawer
Utilize the multi-purpose drawer for versatile storage. It can be used to store ice in the freezer compartment or other food items in the refrigerator section, adapting to your needs.
Large Bottle Rack
The specially designed rack allows for convenient storage of large bottles, maximizing space and organization within the refrigerator door.

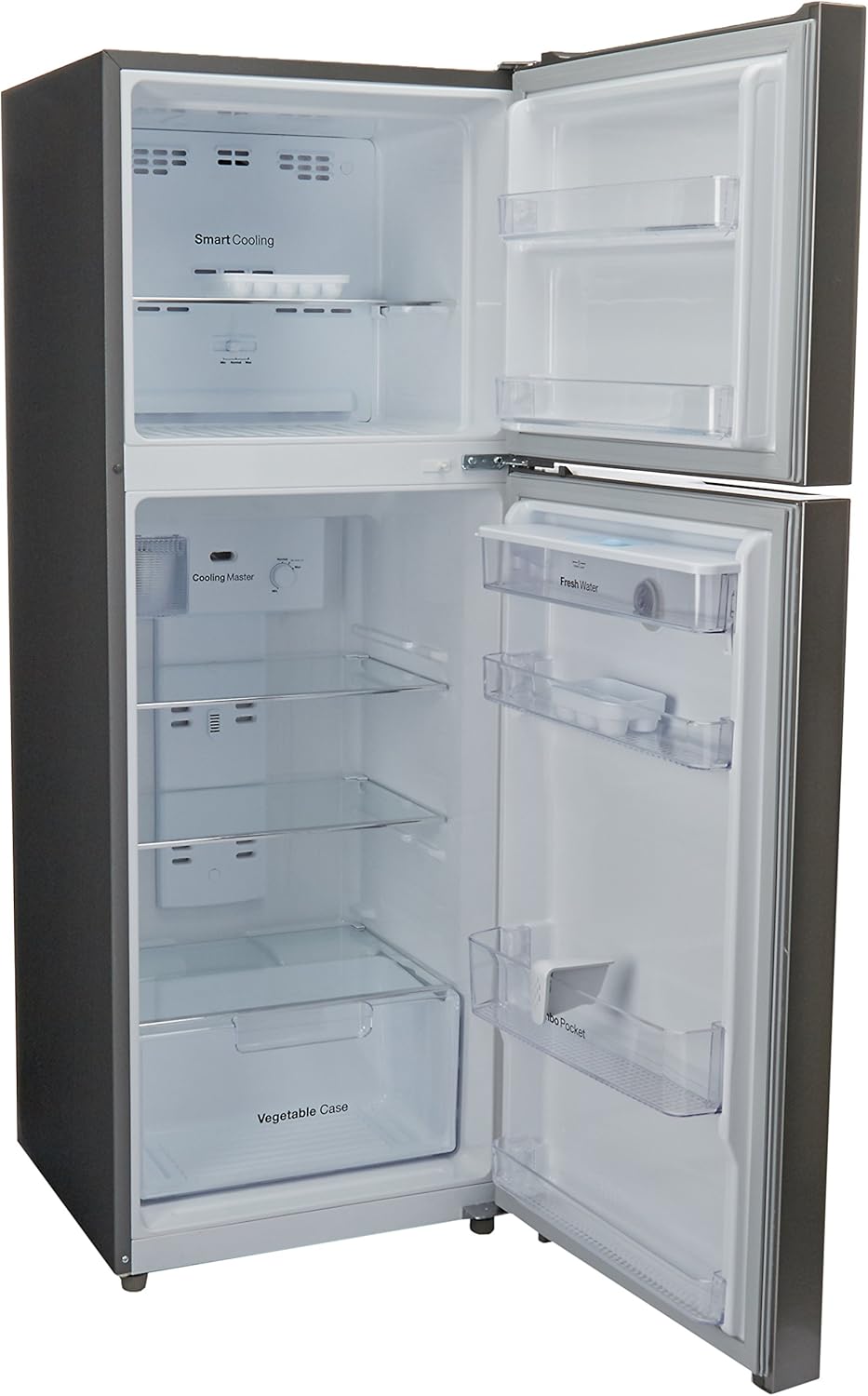

Fíor 2: Interior layout of the Daewoo DFR-32210GNP refrigerator, highlighting storage features.
Dáileoir Uisce
Your refrigerator includes a water dispenser for convenient access to chilled water. Refer to the specific instructions for filling and maintaining the water reservoir, typically located inside the fresh food compartment door.
Cothabháil
Glanadh an Taobh istigh
Clean the interior regularly with a solution of mild detergent and warm water. Rinse thoroughly and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
Glanadh an Taobh amuigh
Glan na dromchlaí seachtracha le héadach bogampened with mild detergent. For stainless steel finishes, use a specialized stainless steel cleaner. Do not spray water directly onto the refrigerator.
Rónta Doras
Clean the door gaskets regularly to ensure a tight seal. A dirty or damaged gasket can lead to inefficient cooling.
Automatic Defrost System
This refrigerator features an automatic defrost system, eliminating the need for manual defrosting of the freezer compartment. Ensure the drain hole is not blocked to allow defrost water to escape.
Cumhacht Outages
I gcás cumhacht outage, coinnigh doirse an chuisneora dúnta chun an teocht inmheánach a choinneáil chomh fada agus is féidir. Seachain na doirse a oscailt gan ghá.
Fabhtcheartú
Sula ndéanann tú teagmháil leis an tseirbhís, seiceáil na fadhbanna coitianta seo a leanas:
- Ní fhuaraíonn an cuisneoir: Check if the power cord is securely plugged in, the circuit breaker has tripped, or the temperature control is set correctly.
- Fuaimeanna neamhghnácha: Some operating noises are normal (e.g., refrigerant flowing, compressor starting/stopping). Ensure the refrigerator is level and not touching a wall.
- Uisce ar an urlár: Seiceáil an bhfuil an panna draenála suite i gceart nó an bhfuil an draein díreoite blocáilte.
- Sioc iomarcach sa reoiteoir: Ensure the freezer door is closing completely and the door gasket is sealing properly.
Má leanann an fhadhb ar aghaidh tar éis na pointí seo a sheiceáil, déan teagmháil le tacaíocht do chustaiméirí.
Sonraíochtaí
| Gné | Sonraíocht |
|---|---|
| Branda | Daewoo |
| Uimhir Mhúnla | DFR-32210GNP |
| Cumraíocht | Mount Mount |
| Cumas Iomlán | 11 troigh chiúbach (322 lítear) |
| Cumas Bia Úra | 7 troigh chiúbach |
| Cumas Reoiteora | 4 troigh chiúbach |
| Toisí (D x W x H) | 72 cm x 65 cm x 178 cm |
| Dath | Airgid |
| Líon na nDoirse | 2 |
| Córas Defrost | Uathoibríoch |
| Imltage | 120 Volta |
| Modh Fuarú | Comhbhrúiteoir |
| Líon na Seilfeanna | 4 |
| Treoshuíomh Doras | Ceart |
| Tomhaltas Bliantúil Fuinnimh | 1000 Cileavata |
| BEE Rating | 5 réalta |
| Cineál Suiteáil | Saorsheasaimh |
Barántas agus Tacaíocht
Your Daewoo DFR-32210GNP Refrigerator comes with a Barántas 3 bhliainCoinnigh do chruthúnas ceannaigh le haghaidh éilimh bharántais.
For technical assistance, service, or warranty inquiries, please contact Daewoo customer support. Refer to the contact information provided with your purchase documentation or visit the official Daewoo websuíomh do do réigiún.
