Riello Lip Seal Instruction Manual

1. Réamhrá

This document provides instructions for the Riello Lip Seal, Model 3007132. This seal is designed for use in various Riello burner models and is crucial for maintaining proper system operation by preventing leaks.

It is compatible with a wide range of Riello burner models, including 2BMR-155T1, 3KMR-180T1, 3M-157T1, 5M-161T1, 6KM-161T2, 10M-163T, 15M-165T, 20M-166T, 3MR-167T1, 6KMR-168T2, 3BM-169T1, 6 KMRI-196T, 5MR-168T1, PRESS-GW-605T1-605T2-605T80-605T85, PRESS-GBW-605T50, PRESS-1G-606T1-606T2, PRESS-2G-607T1-607T2, PRESS-3G-608T1-608T2, PRESS-4G-609T1-609T2, P140TG-476M1, P200TG-477M1, P300TG-478M1, and P450TG-479M1. Additionally, it is compatible with pressure pistons 3006499 and 3005493.

2. Cur síos ar an Táirge

The Riello Lip Seal, Model 3007132, is a critical component manufactured from durable rubber, ensuring effective sealing in demanding environments. Its black color and precise dimensions are engineered for specific applications within industrial installations, commercial buildings, and fire protection systems.

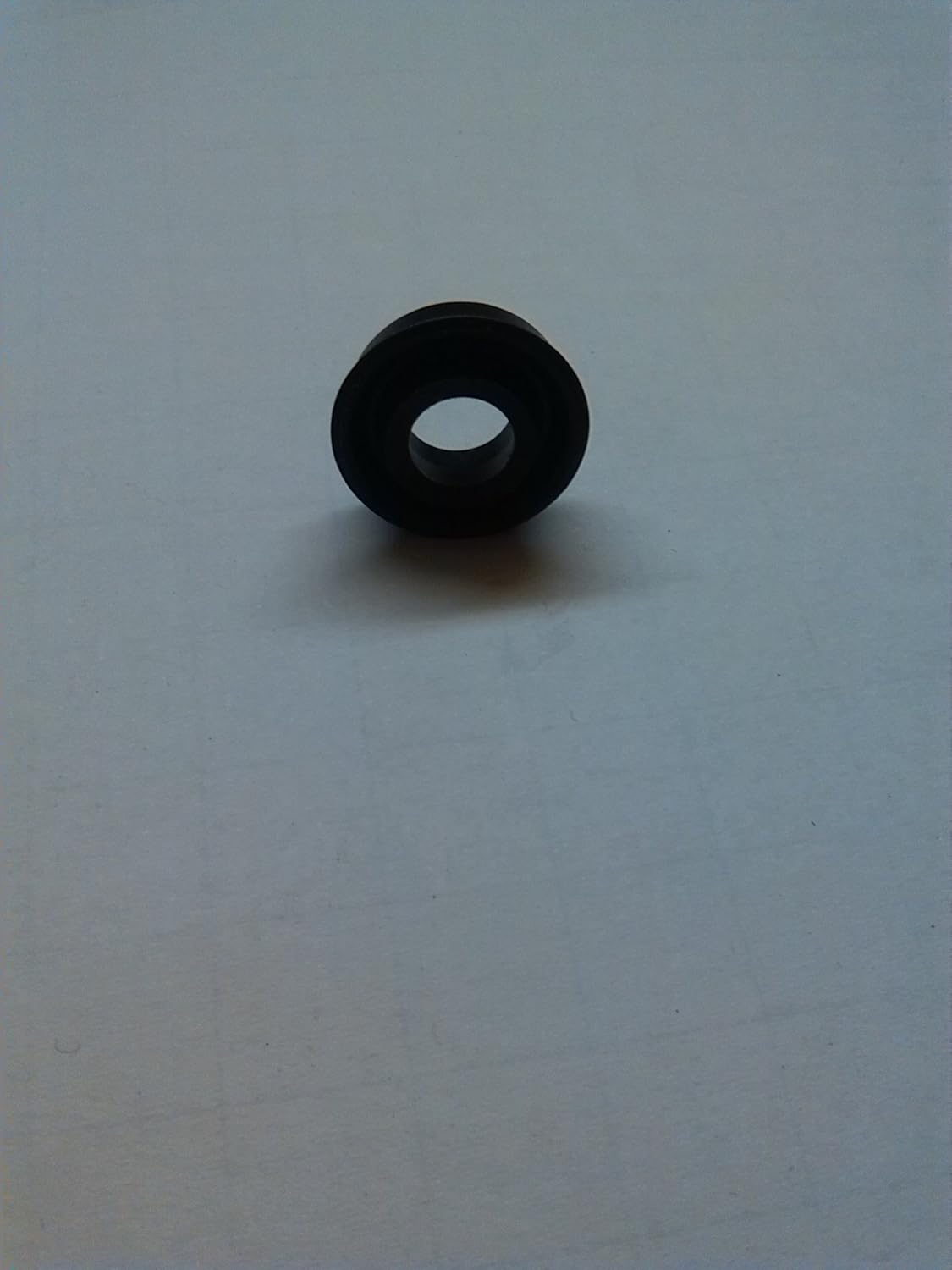

Figure 1: The Riello Lip Seal (Model 3007132). This image shows the circular rubber seal with its central opening, ready for installation.

3. Suiteáil

Sábháilteacht ar dtús: Before beginning any installation, ensure the equipment is powered off and depressurized. Wear appropriate personal protective equipment (PPE) such as gloves and eye protection.

1. Ullmhúchán: Clean the sealing surfaces thoroughly, removing any old gasket material, dirt, or debris. Inspect the surfaces for damage or irregularities that could compromise the seal.
2. Socrúchán: Carefully position the new Riello Lip Seal (Model 3007132) onto the designated component. Ensure it sits flush and is not twisted or pinched. The seal should fit snugly without excessive force.
3. Tionól: Reassemble the components according to the equipment manufacturer's instructions. Tighten fasteners evenly to the recommended torque specifications to ensure uniform compression of the seal. Avoid over-tightening, which can damage the seal.
4. Seiceáil Iar-Suiteála: After assembly, perform a system check to verify proper sealing and absence of leaks. Refer to the equipment's specific operational guidelines.

4. Cothabháil

• Regularly inspect the Riello Lip Seal for signs of wear, cracking, hardening, or deformation. Replace the seal immediately if any damage is observed to prevent system leaks or failures.
• The lifespan of the seal can be affected by operating conditions, temperature, and exposure to chemicals. Establish a preventative maintenance schedule based on the equipment manufacturer's recommendations and operational environment.
• When replacing, always use genuine Riello replacement parts to ensure compatibility and performance.

5. Fabhtcheartú

Sceitheadh: If leakage occurs after installation, check the following:

• Ensure the seal is correctly seated and not twisted.
• Verify that mating surfaces are clean and free from damage.
• Confirm that fasteners are tightened to the correct torque specifications.
• Inspect the seal for manufacturing defects or damage that may have occurred during handling or installation.

Caitheamh Roimh Am: If the seal wears out quickly, consider factors such as:

• Operating temperatures exceeding the seal's specifications.
• Exposure to incompatible fluids or chemicals.
• Excessive pressure or friction within the system.
• Improper installation leading to uneven compression.

For persistent issues, consult a qualified technician or Riello technical support.

6. Sonraíochtaí

7. Faisnéis Sábháilteachta

• Always follow the safety guidelines provided by the manufacturer of the equipment in which this seal is installed.
• Do not attempt to modify the seal. Use only as intended.
• Coinnigh as teacht leanaí.
• Dispose of old seals responsibly according to local regulations.

8. Tacaíocht

For technical assistance, replacement parts, or further information regarding the Riello Lip Seal (Model 3007132), please contact your authorized Riello dealer or visit the official Riello websuíomh.
